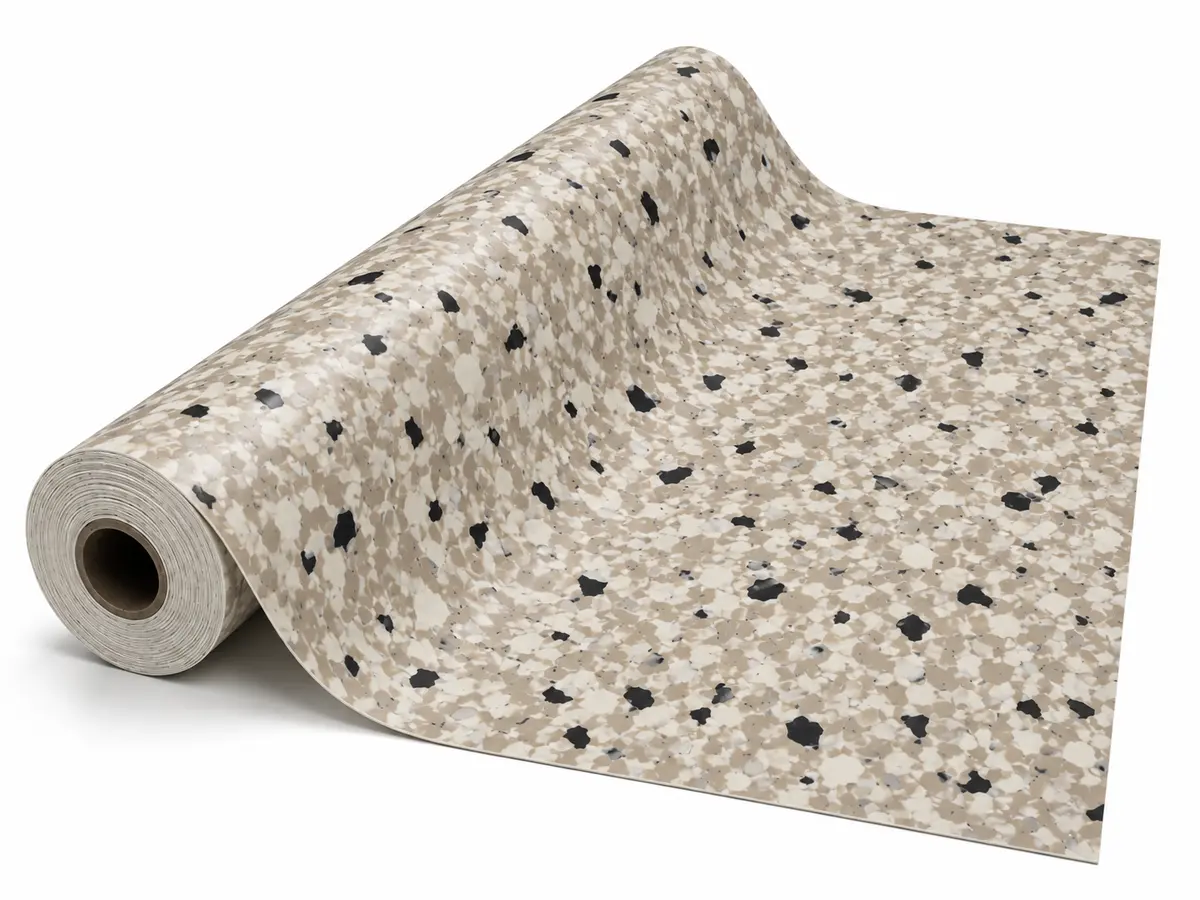

TTR-66 Anti-Static PVC Flooring Roll
TTR-6611 · Color 6611
ANTI-STATIC PVC FLOORING ROLL
The TTR-66 anti-static PVC flooring roll is designed for areas that require stable electrostatic control. Its standard dimensions are 2.0 mm thick, 2 m wide and 20 m per roll. The durable, easy-to-clean surface is suitable for electronics manufacturing facilities, cleanrooms, laboratories, healthcare facilities and other ESD-protected areas.
Select a Color
Roll Dimensions
Standard Size
2.0 mm × 2 m
20 m per roll
Product Weight
2.9 kg/m²
Approximately 116 kg per roll
Reference Price
11.20
–
13.90
/ m²
The price above covers material only and excludes shipping, taxes and other related charges. Final pricing depends on the order quantity and selected product specifications.
Technical Data
ThicknessISO 24346 · EN 430
2.0 mm
Roll DimensionsISO 24341 · EN 426
2 m × 20 m
WeightISO 24341 · EN 426
2.9 kg/m²
System ResistanceDIN 51953 · SJ/T 11236-2001
Dissipative: 1×10⁶–1×10⁹ ΩConductive: <1×10⁶ Ω
Static Voltage DecaySJ/T 10694-2006
≤0.4 s
Frictional VoltageSJ/T 11236-2001
|V| <100 V
Amount of WearSJ/T 11236-2001
≤0.02 g/cm²
Fire PerformanceGB 8624-2006 · SJ/T 11236-2001
Bfl-s1,t1 · FV-0
Smoke ProductionGB 8624-2006
≤750 %/min
Smoke ToxicityGB 8624-2006
Grade ZA₃
Antibacterial PerformanceISO 22196
Grade 1
Slip ResistanceDIN 51130 · EN 13893
R9 · ≥0.3
Hazardous Substance TestGB 18586-2001
Compliant
Formaldehyde EmissionEN 717-1
Not detected
Residual IndentationEN 433
≤0.10 mm
Castor Chair TestEN 425
No delamination or cracks
Dimensional StabilityEN 434
≤0.40%
Color FastnessEN ISO 105-B02
≥ Grade 6
Impact Sound ReductionEN ISO 717-2
Approx. 2 dB
Stain ResistanceEN 423:2001
Index 0 · Not affected
